在基于SpringCloud开发的微服务中，我们一般会选择在网关层记录请求和响应日志，并将其收集到ELK中用作查询和分析。

今天我们就来看看如何实现此功能。

日志实体类

首先我们在网关中定义一个日志实体，用于组装日志对象

@Datapublic class AccessLog

{

    /**用户编号**/    private

 Long userId;

    /**路由**/    private

 String targetServer;

    /**协议**/    private

 String schema;

    /**请求方法名**/    private

 String requestMethod;

    /**访问地址**/    private

 String requestUrl;

    /**请求IP**/    private

 String clientIp;

    /**查询参数**/    private

 MultiValueMap queryParams;

    /**请求体**/    private

 String requestBody;

    /**请求头**/    private

 MultiValueMap requestHeaders;

     /**响应体**/    private

 String responseBody;

    /**响应头**/    private

 MultiValueMap responseHeaders;

     /**响应结果**/    private

 HttpStatusCode httpStatusCode;

     /**开始请求时间**/    private

 LocalDateTime startTime;

    /**结束请求时间**/    private

 LocalDateTime endTime;

    /**执行时长，单位：毫秒**/    private

 Integer duration;

}

网关日志过滤器

接下来我们在网关中定义一个Filter，用于收集日志信息。

@Componentpublic class AccessLogFilter implements GlobalFilter, Ordered

{

    private final

 List> messageReaders = HandlerStrategies.withDefaults().messageReaders();



/**

     * 打印日志

     * @param

 accessLog 网关日志

     */     private void writeAccessLog(AccessLog accessLog)

{

        log.info("----access---- : {}"

, JsonUtils.obj2StringPretty(accessLog));

    }



/**

     * 顺序必须是<-1，否则标准的NettyWriteResponseFilter将在您的过滤器得到一个被调用的机会之前发送响应

     * 也就是说如果不小于 -1 ，将不会执行获取后端响应的逻辑

     * @return     */     @Override    public int getOrder()

{

        return -100

;

    }

    @Override    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain)

{

        // 将 Request 中可以直接获取到的参数，设置到网关日志

        ServerHttpRequest request = exchange.getRequest();

        AccessLog gatewayLog = new

 AccessLog();

        gatewayLog.setTargetServer(WebUtils.getGatewayRoute(exchange).getId());

        gatewayLog.setSchema(request.getURI().getScheme());

        gatewayLog.setRequestMethod(request.getMethod().name());

        gatewayLog.setRequestUrl(request.getURI().getRawPath());

        gatewayLog.setQueryParams(request.getQueryParams());

        gatewayLog.setRequestHeaders(request.getHeaders());

        gatewayLog.setStartTime(LocalDateTime.now());

        gatewayLog.setClientIp(WebUtils.getClientIP(exchange));

        // 继续 filter 过滤

        MediaType mediaType = request.getHeaders().getContentType();

        if

 (MediaType.APPLICATION_FORM_URLENCODED.isCompatibleWith(mediaType)

                || MediaType.APPLICATION_JSON.isCompatibleWith(mediaType)) { // 适合 JSON 和 Form 提交的请求            return

 filterWithRequestBody(exchange, chain, gatewayLog);

        }

        return

 filterWithoutRequestBody(exchange, chain, gatewayLog);

    }



/**

     * 没有请求体的请求只需要记录日志

     */     private Mono<Void> filterWithoutRequestBody(ServerWebExchange exchange, GatewayFilterChain chain, AccessLog accessLog)

{

        // 包装 Response，用于记录 Response Body

        ServerHttpResponseDecorator decoratedResponse = recordResponseLog(exchange, accessLog);

        return

 chain.filter(exchange.mutate().response(decoratedResponse).build())

                .then(Mono.fromRunnable(() -> writeAccessLog(accessLog)));

    }



/**

     * 需要读取请求体

     * 参考 {@link

 ModifyRequestBodyGatewayFilterFactory} 实现

     */     private Mono<Void> filterWithRequestBody(ServerWebExchange exchange, GatewayFilterChain chain, AccessLog gatewayLog)

{

        // 设置 Request Body 读取时，设置到网关日志

        ServerRequest serverRequest = ServerRequest.create(exchange, messageReaders);

        Mono<String> modifiedBody = serverRequest.bodyToMono(String.class).flatMap(body ->

{

            gatewayLog.setRequestBody(body);

            return

 Mono.just(body);

        });

        // 通过 BodyInserter 插入 body(支持修改body), 避免 request body 只能获取一次        BodyInserter<Mono<String>, ReactiveHttpOutputMessage> bodyInserter = BodyInserters.fromPublisher(modifiedBody, String.class)

;

        HttpHeaders headers = new

 HttpHeaders();

        headers.putAll(exchange.getRequest().getHeaders());

        // the new content type will be computed by bodyInserter        // and then set in the request decorator

        headers.remove(HttpHeaders.CONTENT_LENGTH);

        CachedBodyOutputMessage outputMessage = new

 CachedBodyOutputMessage(exchange, headers);

        // 通过 BodyInserter 将 Request Body 写入到 CachedBodyOutputMessage 中        return bodyInserter.insert(outputMessage, new

 BodyInserterContext()).then(Mono.defer(() -> {

            // 重新封装请求

            ServerHttpRequest decoratedRequest = requestDecorate(exchange, headers, outputMessage);

            // 记录响应日志

            ServerHttpResponseDecorator decoratedResponse = recordResponseLog(exchange, gatewayLog);

            // 记录普通的            return

 chain.filter(exchange.mutate().request(decoratedRequest).response(decoratedResponse).build())

                    .then(Mono.fromRunnable(() -> writeAccessLog(gatewayLog))); // 打印日志

        }));

    }



/**

     * 记录响应日志

     * 通过 DataBufferFactory 解决响应体分段传输问题。

     */     private ServerHttpResponseDecorator recordResponseLog(ServerWebExchange exchange, AccessLog accessLog)

{

        ServerHttpResponse response = exchange.getResponse();

        return new

 ServerHttpResponseDecorator(response) {

            @Override            public Mono<Void> writeWith(Publisher<? extends DataBuffer> body)

{

                if (body instanceof

 Flux) {

                    DataBufferFactory bufferFactory = response.bufferFactory();

                    // 计算执行时间

                    accessLog.setEndTime(LocalDateTime.now());

                    accessLog.setDuration((int

) (LocalDateTimeUtil.between(accessLog.getStartTime(),

                            accessLog.getEndTime()).toMillis()));

                    accessLog.setResponseHeaders(response.getHeaders());

                    accessLog.setHttpStatusCode(response.getStatusCode());

                    // 获取响应类型，如果是 json 就打印

                    String originalResponseContentType = exchange.getAttribute(ServerWebExchangeUtils.ORIGINAL_RESPONSE_CONTENT_TYPE_ATTR);

                    if

 (StrUtil.isNotBlank(originalResponseContentType)

                            && originalResponseContentType.contains("application/json"

)) {

                        Flux  fluxBody = Flux.from(body);

                        return super

.writeWith(fluxBody.buffer().map(dataBuffers -> {

                            // 设置 response body 到网关日志                            byte

[] content = readContent(dataBuffers);

                            String responseResult = new

 String(content, StandardCharsets.UTF_8);

                            accessLog.setResponseBody(responseResult);

                            // 响应                            return

 bufferFactory.wrap(content);

                        }));

                    }

                }

                // if body is not a flux. never got there.                return super

.writeWith(body);

            }

        };

    }



/**

     * 请求装饰器，支持重新计算 headers、body 缓存

     *

     * @param

 exchange 请求

     * @param

 headers 请求头

     * @param

 outputMessage body 缓存

     * @return

 请求装饰器

     */     private ServerHttpRequestDecorator requestDecorate(ServerWebExchange exchange, HttpHeaders headers, CachedBodyOutputMessage outputMessage)

{

        return new

 ServerHttpRequestDecorator(exchange.getRequest()) {

            @Override            public HttpHeaders getHeaders()

{

                long

 contentLength = headers.getContentLength();

                HttpHeaders httpHeaders = new

 HttpHeaders();

                httpHeaders.putAll(super

.getHeaders());

                if (contentLength > 0

) {

                    httpHeaders.setContentLength(contentLength);

                } else

 {

                    // TODO: this causes a HTTP/1.1 411 Length Required // on                    // httpbin.org                    httpHeaders.set(HttpHeaders.TRANSFER_ENCODING, "chunked"

);

                }

                return

 httpHeaders;

            }

            @Override            public Flux<DataBuffer> getBody()

{

                return

 outputMessage.getBody();

            }

        };

    }



/**

     * 从dataBuffers中读取数据

     * @author

 jam

     * @date

 2024/5/26 22:31

     */     private byte

[] readContent(List  dataBuffers) {

        // 合并多个流集合，解决返回体分段传输        DataBufferFactory dataBufferFactory = new

 DefaultDataBufferFactory();

        DataBuffer join = dataBufferFactory.join(dataBuffers);

        byte[] content = new byte

[join.readableByteCount()];

        join.read(content);

        // 释放掉内存

        DataBufferUtils.release(join);

        return

 content;

    }

}

代码较长建议直接拷贝到编辑器，只要注意下面一个关键点：

getOrder()方法返回的值必须要<-1，否则标准的NettyWriteResponseFilter将在您的过滤器被调用的机会之前发送响应，即不会执行获取后端响应参数的方法

通过上面的两步我们已经可以获取到请求的输入输出参数了，在 writeAccessLog()中将其打印到日志文件，方便通过ELK进行收集。

在实际项目中，网关日志量一般会非常大，不建议使用数据库进行存储。

实际效果

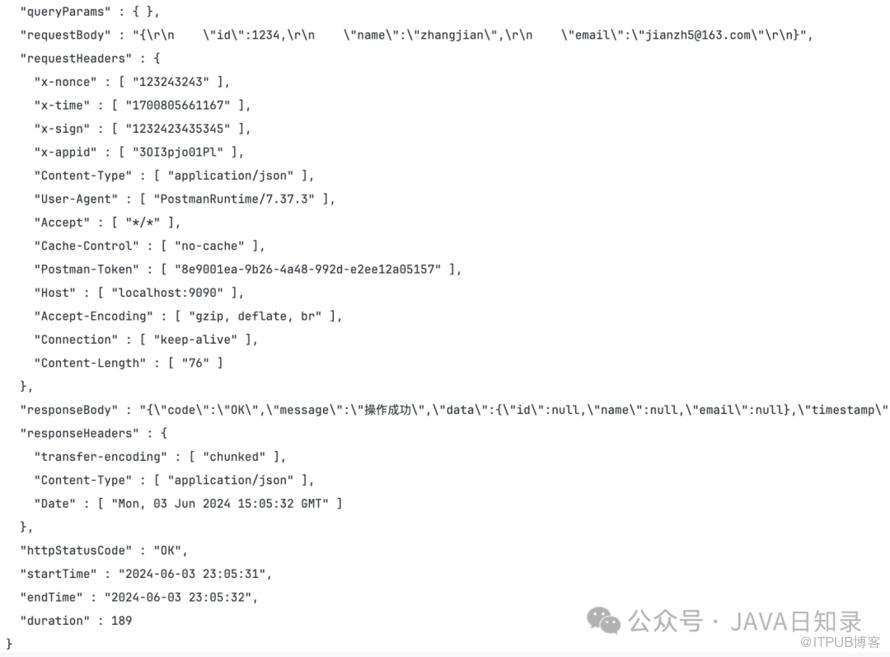

服务正常响应

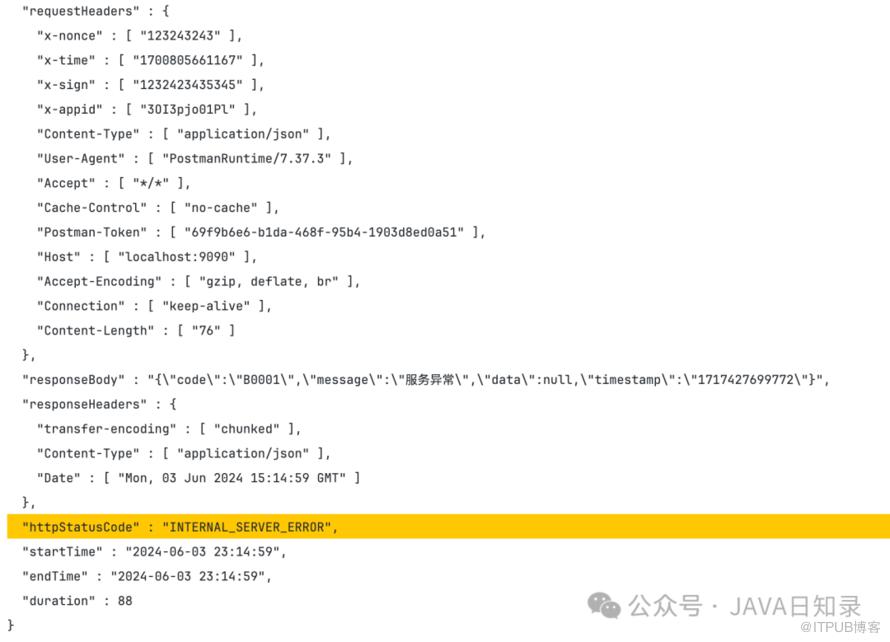

服务异常响应
